Akai RC-92 Remote
Works with Akai cassette decks that use the RC-32 or RC-92 remotes such as the GX-7, GX-9, GX-R6, GX-R66, GX-R70, GX-R70EX, GX-R88, GX-R99, HX-3, HX-A3X, HX-A5X, HX-R5 and HX-R44

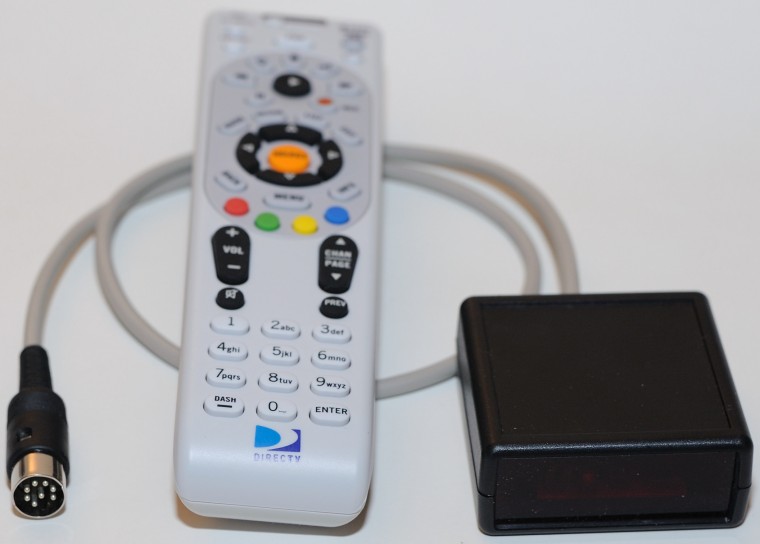

Current price for this remote receiver, DirecTV RC65 universal remote and international AC adapter is $75 plus shipping of $9 within the US and $16 outside the US.

If you would rather buy through eBay I have this listed for $79.99 in auction 221163494774

Contact me if you are interested. My email address is scott@revoxremotes.com

Remote for GX-7, GX-9, GX-R6, GX-R66, GX-R70, GX-R70EX, GX-R88, GX-R99, HX-3, HX-A3X, HX-A5X, HX-R5 and HX-R44. Functions: Forward, Reverse, Fast Forward, Rewind, Stop, Record and Auto Mute. This wireless remote adapter has the U-shaped 8-pin DIN connector on the end. No AC adapter required as power is supplied by the tape deck.

Installation: Turn off the power to the tape deck. Plug the remote adapter into the remote connector on the top or back of the tape deck. Now power can be turned back on. The light on the front of the remote adapter should be on.

The remote adapter controls the following functions: Forward Play, Reverse Play, Fast Forward, Rewind, Stop, Record and Auto Mute if your deck has those functions. All functions can be controlled using any universal remote programmed for the proper Sony VCR code. Reverse play is controlled via the #1 button on the remote keypad. Auto Mute is controlled via the #0 button on the remote keypad.

The remote adapter can be programmed to respond to Sony VHS VCR, Beta VCR, 8mm VCR and Laser Disc Player codes. To select between the four options there are two jumpers inside the unit. Remove the two screws on the bottom of the unit and remove the top cover.

Toward the front window are two jumpers labeled 1 and 2. They configure the remote device code per the table below.

JMP1

JMP2

Device Code

DirecTV

RCA Remote

JMP

JMP

Beta VCR

20033

VCR-119

JMP
OPEN
8mm VCR
20034 VCR-098
OPEN
JMP
VHS VCR
20032 VCR-099
OPEN

OPEN

LDP

----

----

JMP1 and JMP2 are JMP by default

Configuring the RCA Universal Remote
To program the RCA remote press and hold the Code Search button until the red light comes on. Release the Code Search button and momentarily press the VCR button then enter the 3 digit code from the table above (default is 119). The red light should blink after each keypress and go out after the last digit is entered. Press the VCR button and press one of the transport control buttons (PLAY, STOP, FF, REW, REC or PAUSE). The light on the front of the remote adapter should blink off momentarily. If the light does not blink off try reprogramming the remote or check the state of the jumpers inside the remote adapter. On the RCA remotes the REC button needs to be pressed twice to activate record.

Configuring the DirecTV Universal Remote
To program the remote first slide the switch at the top to AV1 or AV2. Press and hold the MUTE and SELECT buttons until the green light at the top blinks twice then release. Using the number keypad enter the 5 digit device code from the table above. If done correctly the green light will blink twice after the last digit is entered. On this remote Record must be pressed twice to activate. The full manual for the DirecTV can be found here.

For instructions on configuring other remotes go to this page and select from the list of tested remotes. Click Here

Remote adapters are also available for Aiwa, Akai, Ampex, Crown, Denon, Nakamichi, Otari, Pioneer, Revox, Sony, Studer, Tandberg, Tascam, Teac and Technics decks.
